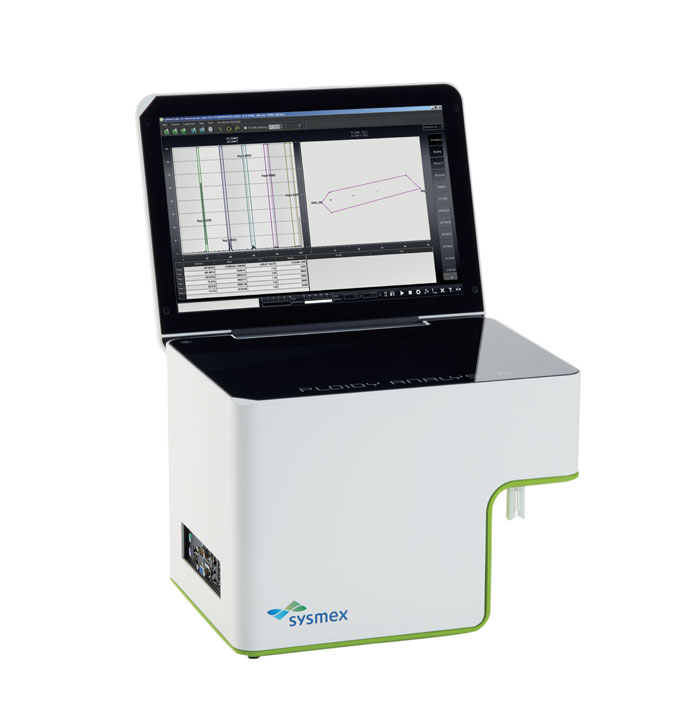

CyFlow Ploidy Analyser is a flow cytometer dedicated to the determination of ploidy levels and genome size.

CyFlow Ploidy Analyser

Automated Ploidy Analyser

The CyFlow Ploidy Analyser is a compact and modular flow cytometerdedicated for ploidy, high resolution DNA and genome size analysis for plants, animals and micro-organisms.

Superior Performance and Efficiency

Guaranteed ease of use operations to achieve fast and accurate results, effortlessly analysed through the CyView software.

1. Multiple data availability

  • Ploidy level variation: polyploidy, haploidy, triploidy, endopolyploidy, apomixes and aneuploidy
  • Nuclear genome size and C-value
  • Sex in plants
  • Cell numbers

2. Productivity and Efficiency

  • Ploidy and genome size analysis results in less than 2 minutes
  • Easy and quick sample preparation thanks to ready-to-use Sysmex Partec reagents
  • Preparation and staining of metaphasechromosomes are not required
  • Detection with +/- 1 chromosome accuracy
  • Replaces time-consuming microscopic evaluations
  • Compact and robust instrumentation allow for measurement at various locations
  • Any living plant material can be analysed: leaves,seedlings, roots, flowers, seeds.
  • Measurement Principle: flow cytometry – Quartz flow cuvette for laminar sample transport and hydrodynamic focusing
  • UV LED and/or 532nm green laser
  • Completely closed fluidic system
  • Sample port with biosafety cleaning system
  • True Volumetric Absolute Counting based on mechanical volume measurement
  • Aspiration speed adjustable from 0.1µL to 19.9µL/s
  • Level sensors on waste bottles and sheath fluid
  • Throughput: optional autoloading station for 96-wells or 120 test tubes.

Download CyFlow Ploidy Analyser brochure here

Features & Benefits

1. Multiple data availability

  • Ploidy level variation: polyploidy, haploidy, triploidy, endopolyploidy, apomixes and aneuploidy
  • Nuclear genome size and C-value
  • Sex in plants
  • Cell numbers

2. Productivity and Efficiency

  • Ploidy and genome size analysis results in less than 2 minutes
  • Easy and quick sample preparation thanks to ready-to-use Sysmex Partec reagents
  • Preparation and staining of metaphasechromosomes are not required
  • Detection with +/- 1 chromosome accuracy
  • Replaces time-consuming microscopic evaluations
  • Compact and robust instrumentation allow for measurement at various locations
  • Any living plant material can be analysed: leaves,seedlings, roots, flowers, seeds.
Specifications
  • Measurement Principle: flow cytometry – Quartz flow cuvette for laminar sample transport and hydrodynamic focusing
  • UV LED and/or 532nm green laser
  • Completely closed fluidic system
  • Sample port with biosafety cleaning system
  • True Volumetric Absolute Counting based on mechanical volume measurement
  • Aspiration speed adjustable from 0.1µL to 19.9µL/s
  • Level sensors on waste bottles and sheath fluid
  • Throughput: optional autoloading station for 96-wells or 120 test tubes.
